FVZ 300hp ISUZU Fire Fighting Truck 16000 Liters Water Tank Fire Truck
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5251GSXF8 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 89200- USD 94200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Type | Diesel | Equipment | Hose Reel, Monitor |
|---|---|---|---|
| Size | Large | Product Name | ISUZU Fire Fighting Truck |
| Cab Capacity | 5 Persons | Drive Type | 6x4 |
| Fire Hose | 2 Sets | Fire Monitor | 1 Set |
| Fire Pump | CB10/60 | GVW | 25,000kg |
| Water Tank Capacity | 12000L | ||
| High Light | 300hp ISUZU Fire Fighting Truck,ISUZU Fire Fighting Truck 16000 Liters,16000 Liters Water Tank Fire Truck |
||
Product Description

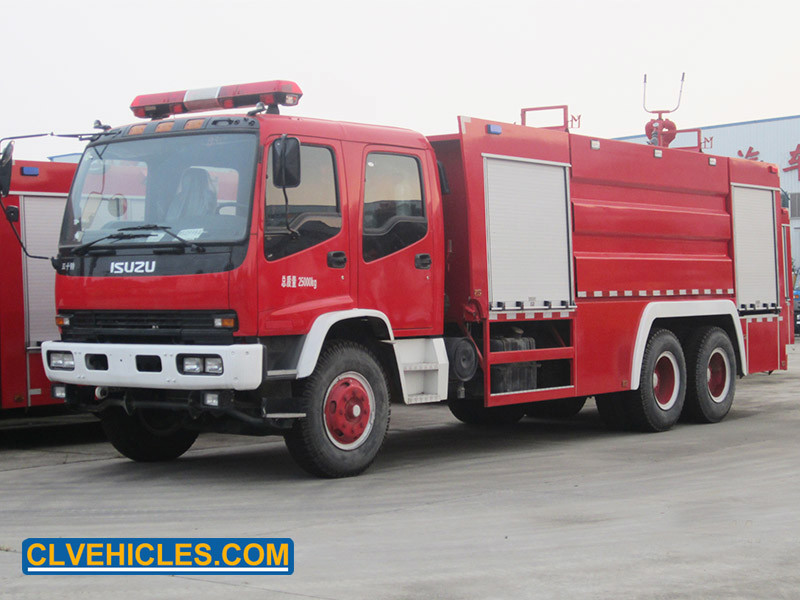

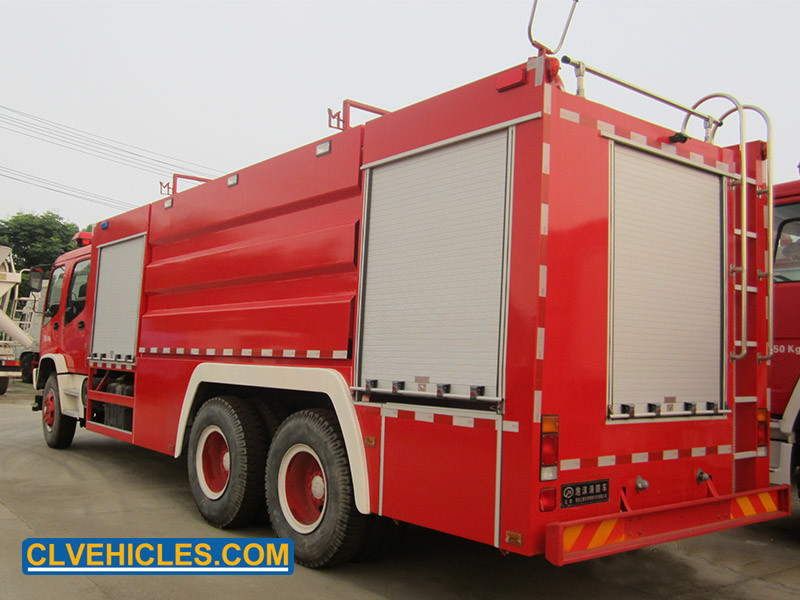

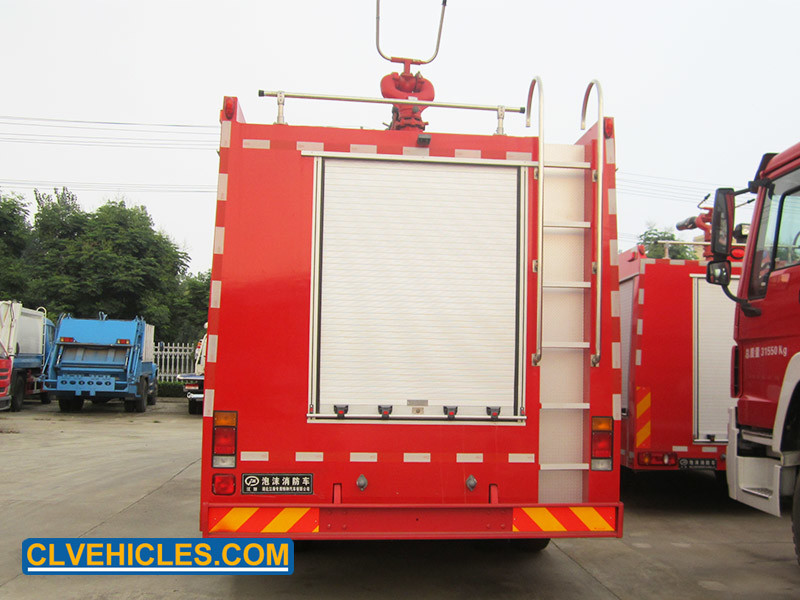

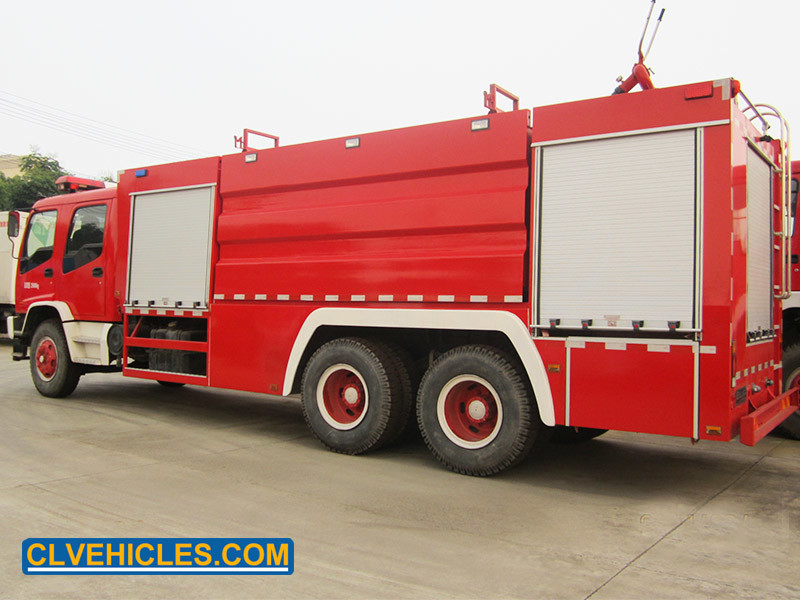

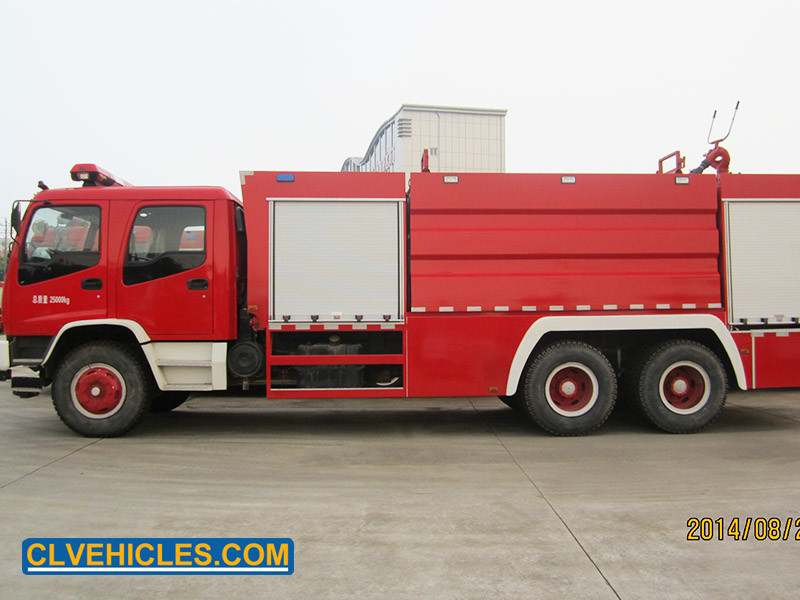

ISUZU FVZ 300hp 16000 Liters Water Tank Fire Fighting Truck
Overview:
Fire Fighting Truck is a fire emergency vehicle that is designed to help Fire Departments to respond to fire emergencies and save lives. It is equipped with a hose reel and monitor, as well as many other features to help firefighters do their job. The truck is made of durable steel and is capable of carrying up to 16000kg of equipment. It has a maximum speed of 80km/h, making it an ideal choice for fast response. The model number for this truck is FVZ, making it easy to identify and order the right parts for maintenance and repair.
The Fire Fighting Truck is an essential tool for fire departments, as it provides firefighters with the right equipment and the ability to get to the scene of an emergency quickly. It is designed to be reliable and efficient in order to help fire departments save lives and protect property. The truck is also highly customizable, allowing fire departments to tailor it to meet the specific needs of their personnel and the community. This makes it a versatile and invaluable asset to the fire department.
Features:
1.ISUZU chassis and engine , perfect and reliable performance.
2.Equipped with multiple fire hose coupling and all kinds of fire fighting equipment in tool cabinet.
3.Independent fire pump room , ensure the smooth progress of the work.
4.Intelligent control integration system ,mange the working state of appearance directly
5.It is with ISUZU chassis ,perfect performance!
Technical Parameters:
| Chassis Specification | |||
| Chassis model | ISUZU FVZ | ||
| Cab | Crew cab with A/C | ||
| Driving Type | 6*4 Left hand driving | ||
| Max Speed (km/h) | 85 | ||
| Overall dimension (mm) | 9525*2480*3500 | ||
| GVW (kg) | 25000 | ||
| Curb weight (kg) | 12250 | ||
| Wheelbase (mm) | 4650+1300 | ||
| F/R track base (mm) | 1960/1855 | ||
| F/R overhang (mm) | 1335/2300 | ||
| Approach/Departure Angel | 26/14 | ||
| Tire | 11.00R20 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | FAST 9-speed | ||
| Axles loading | Front axle (kg) | 7000 | |
| Rear axle (kg) | 18000 | ||
| Engine | Model | 6HK1-TCH | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust (cc) | 7790 | ||
| Max output power (hp) | 300 | ||
| Braking system | Service Brake | Air brake with ABS | |
| Park Brake | Spring energy | ||
| Upper-Body specification | |||
| Tank | Structure | Welding, there is clapboard inner. | |
| Material | Water Tank | High quality carbon steel plate, anti-rust treatment | |
|
Capacity
|
Total | 11,000L | |
| Water Tank | 10,000L | ||
| Foam Tank | 1,000L | ||
| Equipment box | At the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed. |
||
| Pump room | Independent on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | ||
|
Special Parts Parameter |

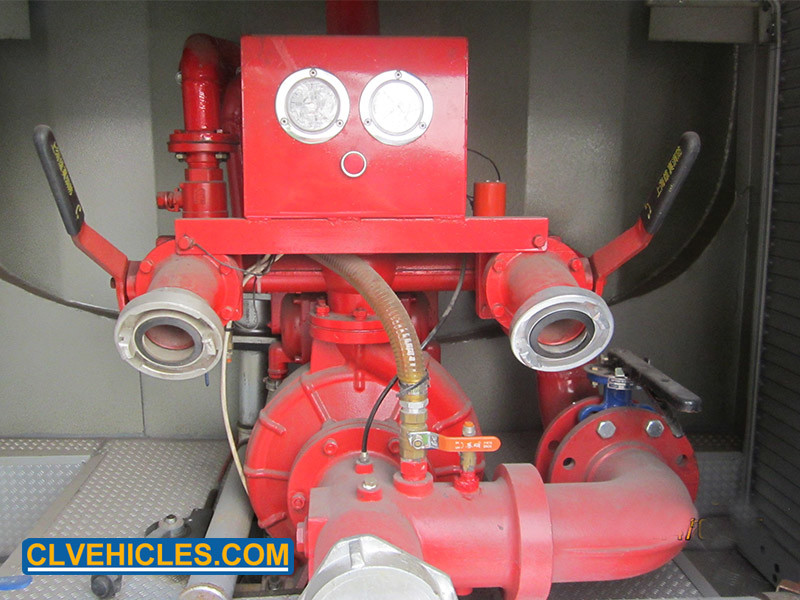

Fire Pump | Type | Normal pressure fire pump |
| Model | CB10/60 | ||
| Flux | 60L/S | ||
| Pressure | 1.0Mpa | ||
| Fire Monitor | Type | For water and foam | |
| Model | PL48 | ||
| Flux | 48L/S | ||
| Pressure | 1.0Mpa | ||
| Additional drive system | Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
| Additional operation system | PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on | ||
| Additional cooling system | The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating | ||
| Additional Electrical system | Warning light ,warning sirens | ||
| Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge | |||
| Fire lights, pump room lights, equipment box lights | |||
| Additional instrumentation | Pressure gauge | ||
| Speedometer | |||
| Level gauge | |||
| Vacuum gauge | |||
| Carriage | Carriage is made of high-quality steel and Aluminum embossed sheet | ||
| Rolling shutter door | Light and high-quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | ||
| Color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. | ||
Applications:
ISUZU Fighting Truck is an ideal fire rescue vehicle, fire control vehicle, and fire emergency vehicle, manufactured by Chengli, a renowned brand in HuBei province, China. This fire fighting truck is made of high-quality steel, with a total weight of 7000kg and a large size. It is equipped with a 3000L water tank to provide efficient fire extinguishing capability. The truck is powered by a diesel engine, providing reliable power for emergency situations. This fire fighting truck is ideal for fire rescues, fire control, and fire emergency situations.
Customization:
Custom Fire Fighting Truck Service
We provide custom-made fire fighting truck services, specifically for the needs of your project. Our fire fighting truck is designed to carry up to 20,000 liters and with a wheelbase of 2,400-5,500 mm in 4x2, or 6x4, 8x4 type chassis. You can select from either a single or double cab and also choose from a range of optional equipment such as high-pressure fire pump, and fire monitor.
Whether you need a water tank type vehicle, foam fire truck, dry powder fire truck or water tank truck for fire fighting, our custom-made fire truck is the perfect solution.
Support and Services:
Sewage Vacuum Truck Technical Support and Service
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
Q1: What is the Brand Name of Fire Fighting Truck?
A1: The Brand Name of Fire Fighting Truck is Chengli, which is from HuBei China.
Q2: What is the function of Fire Fighting Truck?
A2: Fire Fighting Truck is used for fire fighting and rescue, which provides a quick response to different occasions.
Q3: What is the capacity of Fire Fighting Truck?
A3: The capacity of Fire Fighting Truck is ranging from 3,000 liters to 20,000 liters.
Q4: Is it possible to customize the Fire Fighting Truck?
A4: Yes, it is possible to customize the Fire Fighting Truck according to customer’s requirements.
Q5: What is the warranty period of Fire Fighting Truck?
A5: The warranty period of Fire Fighting Truck is one year.
