ISUZU 700P 190hp Truck Mounted Vacuum Road Sweeper 7360kg Gvw
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS |
| Model Number | CL5071GSXS1 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 54200- USD 64200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cleaning Process | Cold Water Cleaning | Condition | New |
|---|---|---|---|
| Truck | Road Cleaning Truck | Gvw | 7360kg |
| Product | Road Sweeper | Truck Name | Street Sweeper |
| Tire | 7.00r16 | Supply Ability | 200units/Month |
| Transmission Type | Manual | Fuel | Diesel |
| Customization | Available | Customized Request | ||
| High Light | 190hp Truck Mounted Vacuum Road Sweeper,700P Truck Mounted Vacuum Road Sweeper,Truck Mounted Vacuum Road Sweeper 7360kg |
||
Product Description

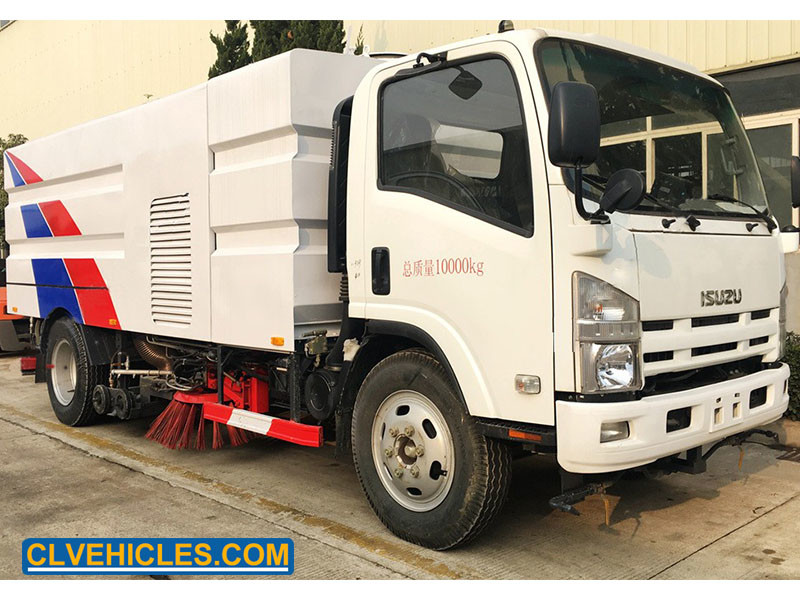

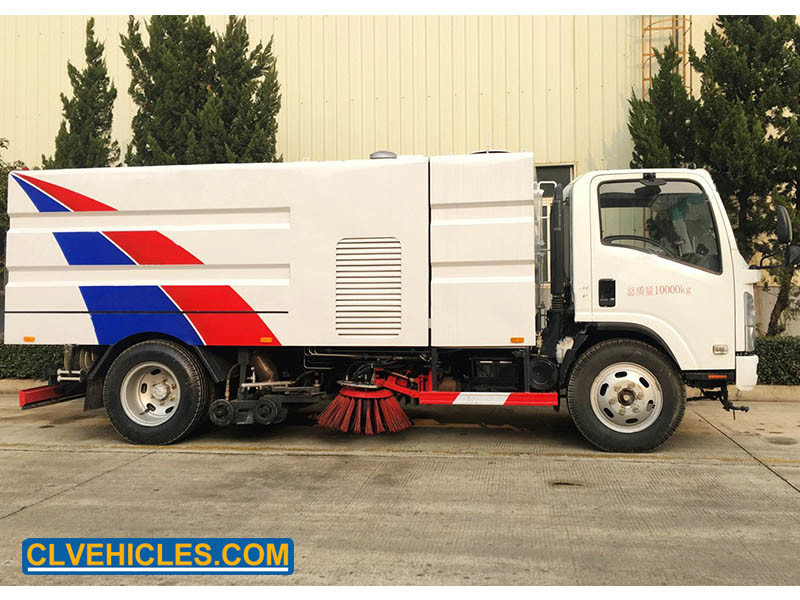

ISUZU 700P 190hp High Pressure Street Sweeper Road Cleaning Truck
Product Description
Road sweeper truck is also called street sweeper truck, street cleaning truck, road sweeper vehicle.
it combine the function of road sweeping, garbage collection and garbage transportation , is new type
efficient sanitation special cleaning vehicle.
It is made of chassis, vice engine, air blower, electromagnetic valve, dust tank, water tank, sucker,
sweeper brush,spraying water system, hydraulic system, electric control system, etc.
It is mainly used to sweep the road garbage of street, highway,dock, station, square,cement mill,
electric power plant, etc.
Product Parameters
| Vehicle performance and parameters | |||
| Item | Parameter | Unit | |
| Working Performance | Max sweep width | 3 | m |
| Low pressure flushing width | 24 | m | |
| Sweep speed | 3—15 | km/h | |
| Max sweep capacity | 70000 | m2/h | |
| Max inhalation of granularity | ≥110 | mm | |
| Angle of unloading | ≥48 | . | |
| Volume of water tank | 5000 | L | |
| Volume of garbage tank | 5000 | L | |
| Driving Performance | Max speed | 98 | km/h |
| Max grade-ability | 30 | % | |
| Braking distance | ≤10 | m | |
| Min turning diameter | ≤13.6 | m | |
| Fuel Performance | Fuel consumption(Driving) | ≤12 | L/100km |
| Fuel consumption(Sweep working at 8km/h) | 6.5 | L/h | |
| 2.7 | L/10000m2 | ||
| Quality Parameters | Curb weight | 7000 | kg |
| Rated capacity | 4200 | kg | |
| GVW | 11000 | kg | |
| Dimension Parameter | Wheelbase | 3815 | mm |
| Track front | 1745 | mm | |
| Track rear | 1640 | mm | |
| Front suspension | 1130 | mm | |
| Rear suspension | 2070 | mm | |
| Approach angle | 21 | . | |
| Departure angle | 12 | . | |
