ISUZU FVR Fire Truck Firefighter 10000L Water And Foam With Monitor
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5181GSXF1 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 69800- USD 77100/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fire Fighting Truck | Gross Vehicle Weight | 18000kg |
|---|---|---|---|
| Engine Type | Diesel | Tank Capacity | 10000L |
| Model | ISUZU Fire Fighting Truck | Color | Red |
| Braking System | Air Brake | Dimension | 8500×2500×3200mm |
| Max. Pressure | 1.0MPa | Spray Range | ≥50m |
| Steering | Power Steering | Transmission | 6-speed Manual |
| High Light | ISUZU FVR Fire Truck Firefighter,Fire Truck Firefighter 10000L |
||
Product Description

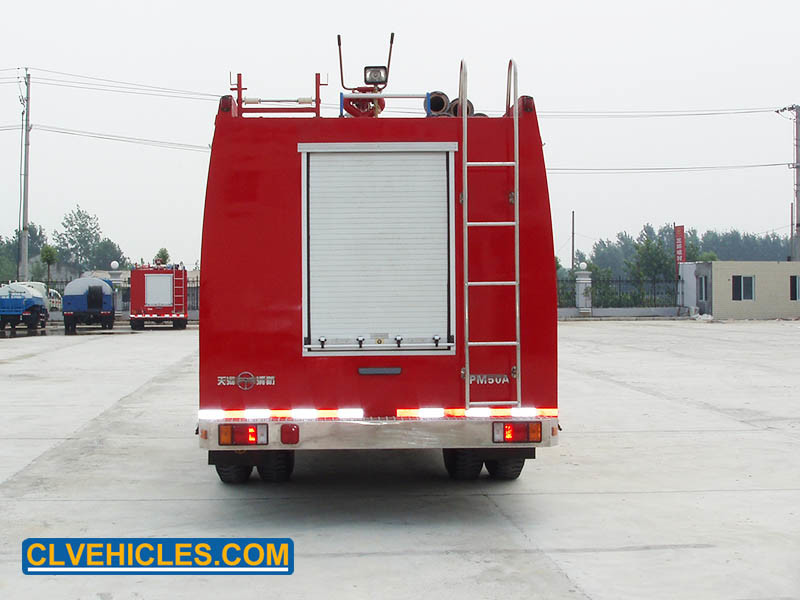

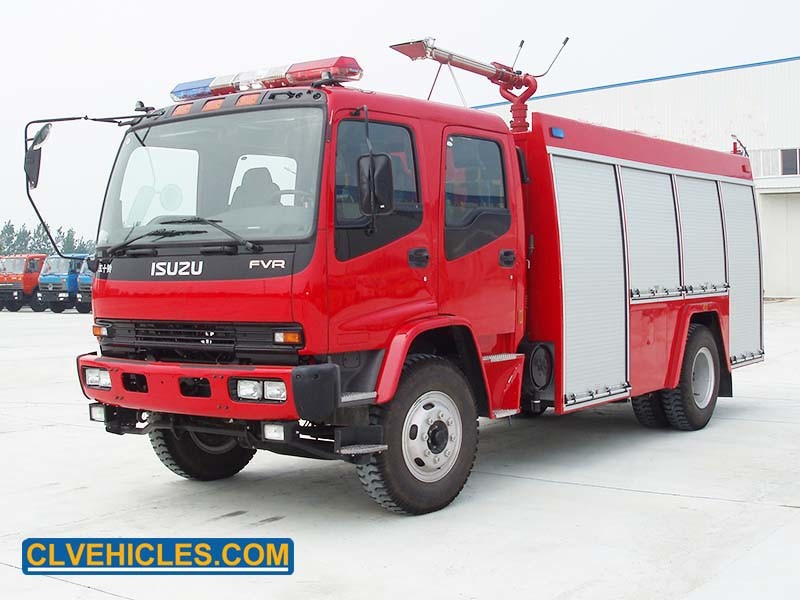

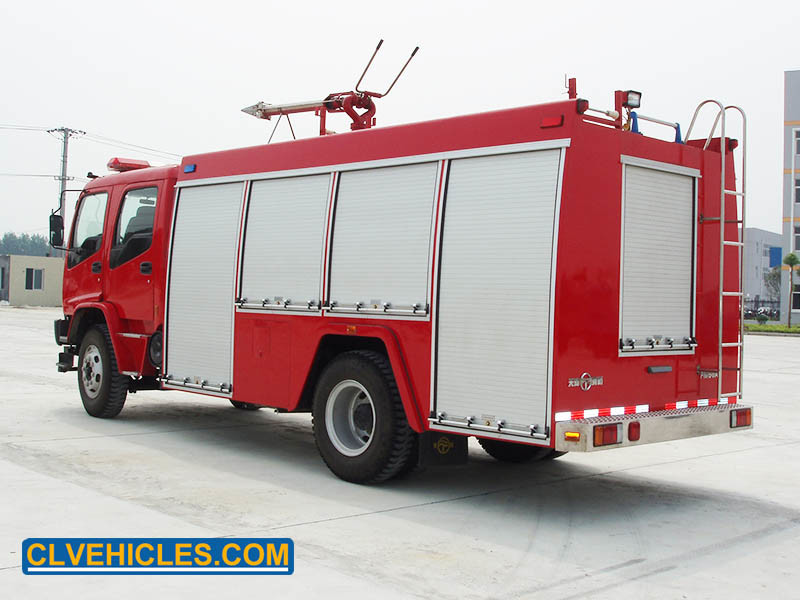

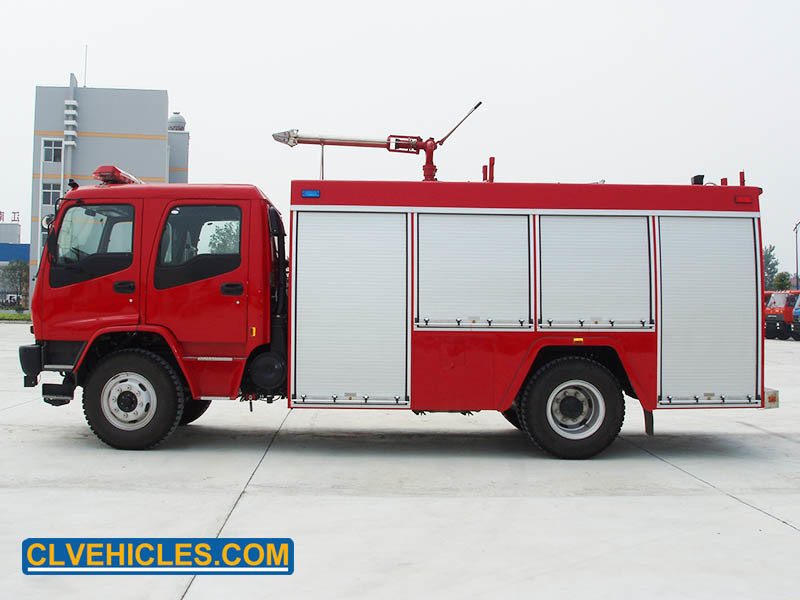

ISUZU FVR 10000L Water and Foam Red Large Fire Fighting Truck with Monitor
Overview:
Fire Fighting Truck is a fire department vehicle, also known as a fire apparatus truck or fire rescue vehicle. This fire fighting truck is large in size and its model number is FVR. It has a total weight of 18000kg and is covered by a 1-year warranty. Fire fighters and first responders rely on this fire fighting truck to respond to emergency calls and keep people safe. This fire fighting truck is equipped with the necessary tools and features to protect civilians and save lives. It is an invaluable asset to any fire department and an integral part of keeping communities safe from the dangers of fire.
Features:
1.ISUZU chassis and engine , perfect and reliable performance.
2.Equipped with multiple fire hose coupling and all kinds of fire fighting equipment in tool cabinet.
3.Independent fire pump room , ensure the smooth progress of the work.
4.Intelligent control integration system ,mange the working state of appearance directly
5.It is with ISUZU chassis ,perfect performance!
Technical Parameters:
| Chassis Specification | |||
| Chassis model | ISUZ FVR | ||
| Cab | Crew cab with A/C | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 8450*2500*3500 | ||
| GVW(kg) | 18100 | ||
| Mass in working order (kg) | 10650 | ||
| Wheelbase(mm) | 5550 | ||
| F/R track base (mm) | 1960/1855 | ||
| F/R overhang (mm) | 1335/2300 | ||
| Approach/Departure Angel | 26/14 | ||
| Tire | 295/80R22.5 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | MLD 6-speed | ||
| Bridge | Front axle | 6.3T | |
| Rear axle | 13T | ||
| Engine | Model | 6HK1-TCL | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke, direct injection, turbocharged | ||
| Exhaust(ml) | 7790 | ||
| Max output power(hp) | 240 | ||
| Braking system | Service Brake | Air brake | |
| Park Brake | Spring energy | ||
| Electric system | 24v | ||
| Superstructure specification | |||
| Tank | Structure | Welding, there is clapboard inner. | |
| Material | Water Tank | High quality carbon steel plate, anti-rust treatment | |
| Capacity | Total | 10000L | |
| Water Tank | 10000L | ||
| Foam Tank | - | ||

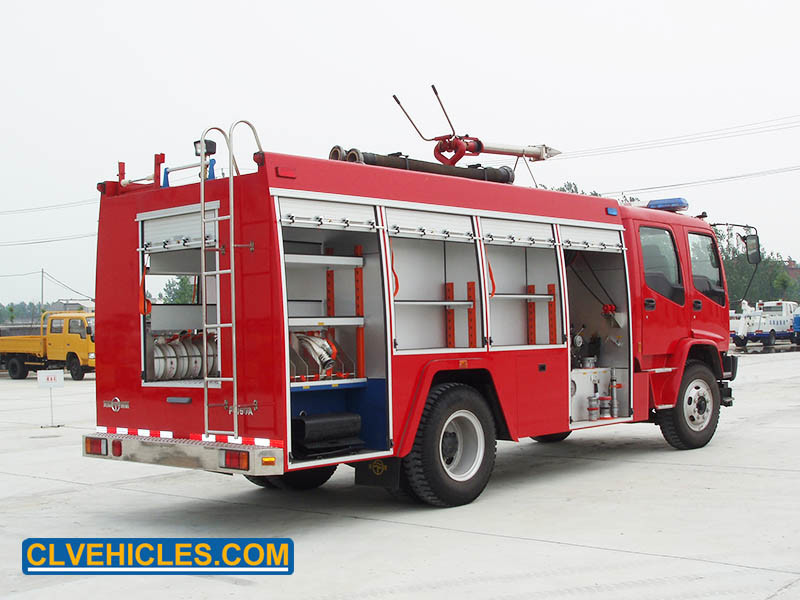

| Equipment box | Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed. |
||
| Pump room | On the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | ||
| Special Parts Parameter | Fire Pump | Type | Normal pressure fire pump |
| Model | CB10/40 | ||
| Flux | 40L/S | ||
| Pressure | 1.0Mpa | ||
| Fire Monitor | Type | For water | |
| Model | PS40 | ||
| Flux | 40L/S | ||
| Pressure | 1.0Mpa | ||
| Additional drive system | Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
| Additional operation system | PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on | ||
| Additional cooling system | The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating | ||
| Additional Electrical system | Warning light, warning sirens | ||
| Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge | |||
| Fire lights, pump room lights, equipment box lights | |||
| Additional instrumentation | Pressure gauge | ||
| Speedometer | |||
| Level gauge | |||
| Vacuum gauge | |||
| Carriage | Carriage is made of high-quality steel and Aluminum embossed sheet | ||
| Rolling shutter door | Light and high-quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | ||
| Color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. | ||
Applications:
ISUZU Fighting Truck is an ideal fire rescue vehicle, fire control vehicle, and fire emergency vehicle, manufactured by Chengli, a renowned brand in HuBei province, China. This fire fighting truck is made of high-quality steel, with a total weight of 7000kg and a large size. It is equipped with a 3000L water tank to provide efficient fire extinguishing capability. The truck is powered by a diesel engine, providing reliable power for emergency situations. This fire fighting truck is ideal for fire rescues, fire control, and fire emergency situations.
Customization:
Custom Fire Fighting Truck Service
We provide custom-made fire fighting truck services, specifically for the needs of your project. Our fire fighting truck is designed to carry up to 20,000 liters and with a wheelbase of 2,400-5,500 mm in 4x2, or 6x4, 8x4 type chassis. You can select from either a single or double cab and also choose from a range of optional equipment such as high-pressure fire pump, and fire monitor.
Whether you need a water tank type vehicle, foam fire truck, dry powder fire truck or water tank truck for fire fighting, our custom-made fire truck is the perfect solution.
Support and Services:
Sewage Vacuum Truck Technical Support and Service
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
Q1: What is the Brand Name of Fire Fighting Truck?
A1: The Brand Name of Fire Fighting Truck is Chengli, which is from HuBei China.
Q2: What is the function of Fire Fighting Truck?
A2: Fire Fighting Truck is used for fire fighting and rescue, which provides a quick response to different occasions.
Q3: What is the capacity of Fire Fighting Truck?
A3: The capacity of Fire Fighting Truck is ranging from 3,000 liters to 20,000 liters.
Q4: Is it possible to customize the Fire Fighting Truck?
A4: Yes, it is possible to customize the Fire Fighting Truck according to customer’s requirements.
Q5: What is the warranty period of Fire Fighting Truck?
A5: The warranty period of Fire Fighting Truck is one year.
