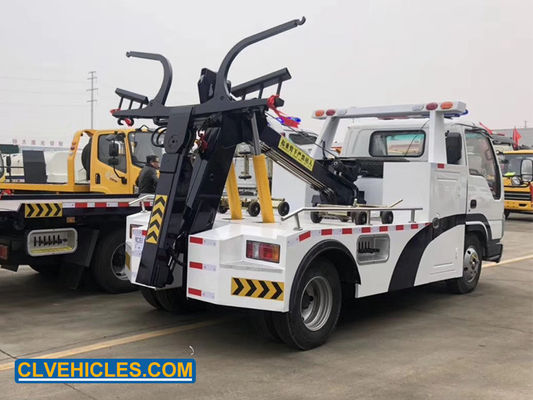

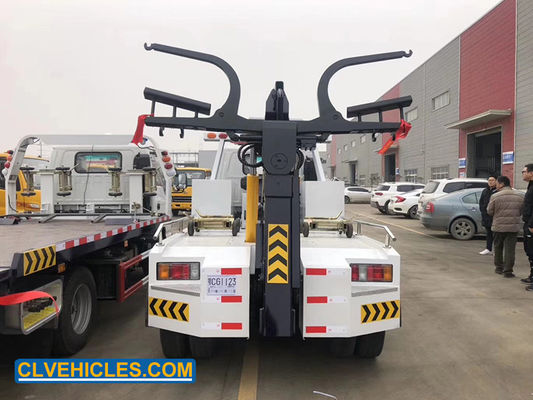

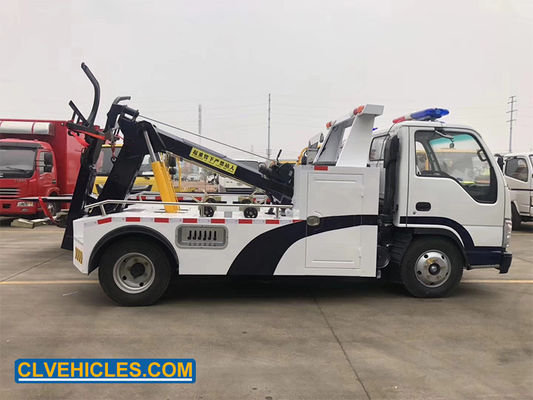

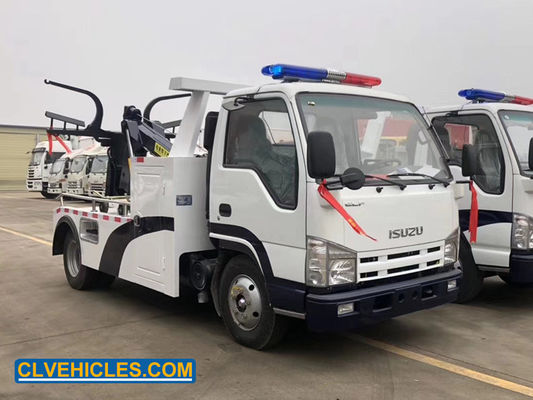

ISUZU 100P 98hp Wrecker Tow Trucks 3 Ton Integrated Type
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5053TQZD1 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 26200- USD 28200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Wrecker Tow Truck | Capacity | Light Duty |
|---|---|---|---|
| Color | White | Fuel Type | Diesel |
| Body | Steel | Brakes | 4-Wheel Hydraulic Disc With ABS |
| Cab | Crew Cab | Gross Vehicle Weight Rating (GVWR) | 5,000 Kg |
| Payload Capacity | 2,950 Kg | Steering | Power Steering |
| Towing Capacity | 4,000 Kg | Wheelbase | 3360 Mm |
| High Light | ISUZU 100P Wrecker Tow Trucks,98hp Wrecker Tow Trucks,heavy tow truck 3 Ton |
||
Product Description
ISUZU 100P 98hp 3ton Integrated Type Wrecker Tow Truck with Airbags Safety Features
Overview:
Introducing our Wrecker Tow Truck, the perfect heavy-duty roadside assistance truck for auto breakdowns. This rollback tow truck is equipped with a powerful diesel engine, giving it a high towing capacity and reliable performance. It also features ABS brakes for added safety, and comes with a 1-year warranty so you can rest assured that it will provide long-lasting service. And with its white color, it looks great on the road. With our Wrecker Tow Truck, you can be sure that your car breakdowns will be handled with efficiency and care.
Features:
1. With strong lifting arm and rear tow arm, it can easily towvehicles weight 4~8 tons;
2. 4-6 tons winch with 25m steel rope can help the vehicle moving to the rear of vehicle that the engine ofvehicle is broken Import hydraulic system, more reliable and stable;
3. Control levers on boths side of wrecker truck, you cancontrol it freely;
4. With one set of assist wheelers. When the wheel of cars broken, the assist wheelers can help the cars moving.
Technical Parameters:
| Truck Specification | ||
| Cab | 100P Single row Cabin with A/C, Power steering | |
| Driving Type | 4*2 left hand driving | |
| Max Speed (km/h) | 98 | |
| Overall dimension(mm) | 6000*2090*2670 | |
| Mass in working order(kg) | 4800 | |
| GVW(kg) | 6275 | |
| Wheelbase(mm) | 3815 | |
| Tire | 6.50-16 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | MSB 5-speed | |
| Bridge | Front axle | 2.5T |
| Rear axle | 3.5T | |
| Engine | Model | 4JB1-CN |
| Fuel Type | Diesel fuel | |
| Type | Water-cooled four-stroke, direct injection, turbocharged | |
| Exhaust (ml) | 2771 | |
| Max.output/ rotate speed(hp/rpm) | 98/2900 | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Electric system | 12v | |
| Upper-Body specification | ||
| Hydraulic Under Lift at Rear | ||
| Fully Retracted Lifting weight(kg) | 4000 | |
| Fully Extend Lifting Weight(kg) | 2300 | |
| Max. Rated towing weight(kg) | 6495 | |
| Max effective length of boom (mm) | 1520 | |
| Extension traveling of boom (mm) | 900 | |
| Boom structure | ||
| Maximum lifting height(mm) | 3700 | |
| Fully Retracted Lifting weight(kg) | 5000 | |
| Fully Extended Lifting weight(kg) | 800 | |
| Extension traveling of hoisting boom(mm) | 1540 | |
| Hydraulic winches & steel cables | ||
| Type: | Planetary type | |
| Quantity (set) | 1 | |
| Max. Pulling power of winch (kgs) | 5000 | |
| Length of steel cable(m) | 15 | |
| Speed of winch (m/min) | 3.23 | |
| Diameter of winch(cm) | 11 | |
| Hydraulic Outriggers | ||
| Quantity | 2 | |
| type | in-built with power elevation &extension | |
| Power take off | ||
| Type | PTO drive from transmission | |
| Wrecker Operation | ||
| Description | Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. | |
| Hydraulic System | ||
| Description | Suitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. | |
| Safety Device | ||
| Auto brake for winch | Automatic safe brake in case winch / Engine fail. | |
| Hydraulic valves | Necessary hydraulic pressure relief & lock valve/ valves | |
Applications:
A Wrecker Tow Truck is a large and heavy-duty recovery vehicle with a high towing capacity and advanced safety features such as airbags and seatbelts. It is the perfect choice for those looking for a reliable and powerful wheel-lift tow truck or medium-duty tow truck. This truck is designed to meet the needs of commercial and industrial customers. It can easily tow large loads, even in difficult terrain or conditions. With its powerful towing power, it can quickly recover and move heavy vehicles and equipment. This makes it a great choice for any roadside assistance company or emergency service. It is also a great choice for those who are involved in construction or other large-scale projects.
Customization:
Wrecker Tow Truck
Support and Services:
Wrecker Tow Truck Technical Support and Service
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
1. Q: What is a Wrecker Tow Truck?
A: A Wrecker Tow Truck is a heavy-duty vehicle used for towing or transporting goods from one place to another.
2. Q: What are the features of a Wrecker Tow Truck?
A: A Wrecker Tow Truck typically features a powerful engine, a large towing capacity, and a reinforced chassis for carrying heavy loads.
3. Q: What types of vehicles can be towed by a Wrecker Tow Truck?
A: A Wrecker Tow Truck can tow most types of vehicles, including cars, trucks, vans, and SUVs.
4. Q: How much can a Wrecker Tow Truck tow?
A: The towing capacity of a Wrecker Tow Truck depends on its size and engine power. Generally, they can tow up to 10 tons.
5. Q: Can a Wrecker Tow Truck be used for emergency situations?
A: Yes, a Wrecker Tow Truck can be used for emergency situations such as accident recovery and rescuing vehicles that have become stranded on the side of the road.
