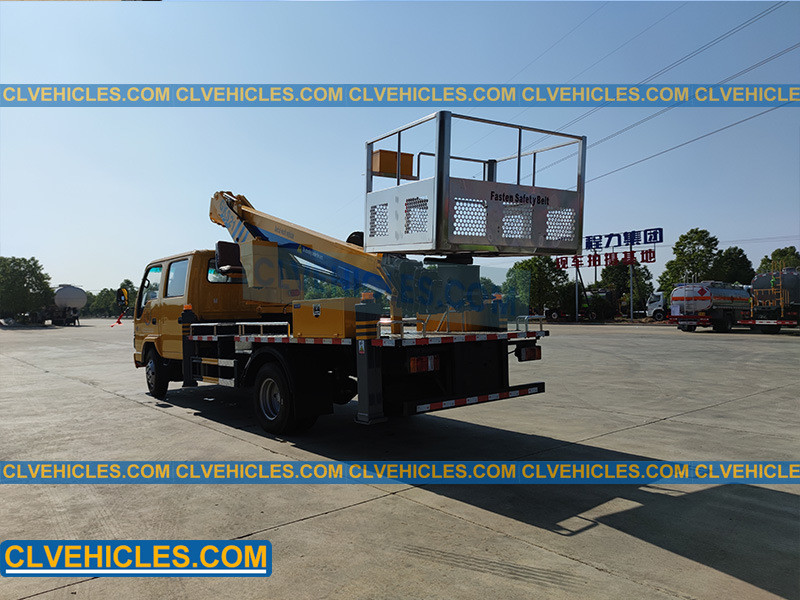

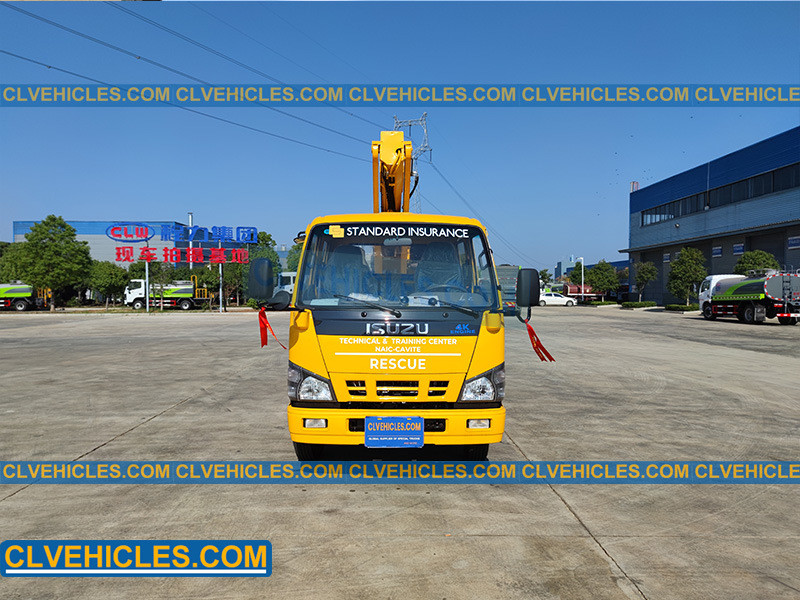

ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100

Place of Origin China
Brand Name ISUZU
Certification CGC,ISO9001:2015,TUV SUD,PV,CNAS
Model Number CL5071GKZY3
Minimum Order Quantity 1 UNIT
Price USD 50200- USD 55200/ UNIT
Delivery Time 45-60 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Payload 200kg Fuel Diesel
Transmission Type Manual Drive Wheel 4x2
Condition New Supporting Leg Hydraulic
Working Height 21m Bucket Size 1200*600*1100
Warrany 1 Year Bucket Loading 200kg
Driving Type Left Hand Driving Or Right Hand Driving Boom Type Telescopic
Product Aerial Lift Bucket Trucks Specification 5990*1980*2900mm
HS Code 8705909990 Hoesrpower 130HP
Highlight

ISUZU 600P Telescopic Bucket Truck

,

Telescopic Bucket Truck 21m

Leave a Message
Product Description

ISUZU 600P 130hp 21m Telescopic Boom Bucket Truck Aerial Work Manlift Truck

Product Description


Japan Brand New 600P Telescopic Boom 21m bucket Aerial Truck



-About Aerial Platform Truck:

Our unique design operation system of three-section telescopic boom could help the worker stable operation in the air.
The main purposes are: maintaining, installing, cleaning, camera shooting, ship bulding, chemical industry, electric power, pruning and streetlight changing etc. in the air from 8m to 24m height.

-Characteristics:

1. The boom is made of high-strength steel plate HQ60/5mm welded and formed, and the outriggers are made of low-alloy Q345 profile, with no welds around, beautiful appearance, strong force and high strength;
2. The cylinder drive chain drives the telescopic arm to expand and contract synchronously, which is stable and reliable;
3. H-shaped outriggers have good stability, the outriggers can be operated at the same time or individually, and the operation is flexible and can adapt to a variety of working conditions;
4. The turntable rotates in two directions at 360°, and adopts an advanced worm and worm integrated closed reduction mechanism; (with self-lubricating and self-locking functions)
5. Automatic control by controller, with display screen, set protection mode to limit amplitude, safe and reliable;
6. Two-position operation of getting off the car and the hanging basket, electro-hydraulic proportional speed regulation;
7. Getting off and getting on is interlocked, the operation is safe and reliable;
8. The hanging basket adopts advanced static hydraulic automatic leveling, which is more stable and reliable;
9. There are engine start and stop switches for getting off the car and the hanging basket, which is easy to operate and save fuel;

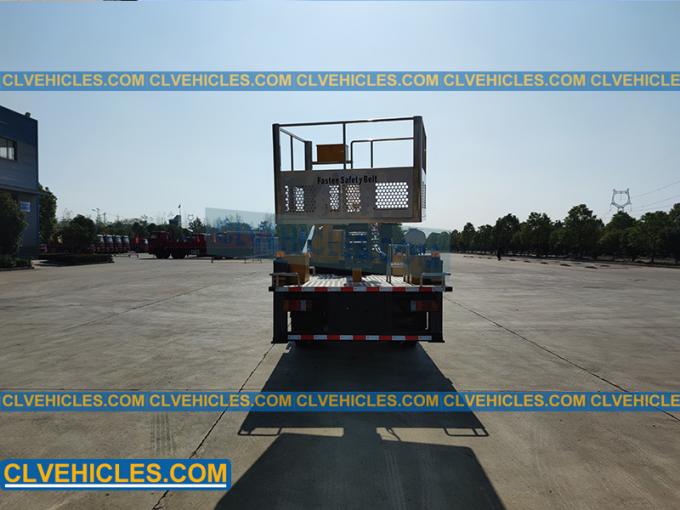

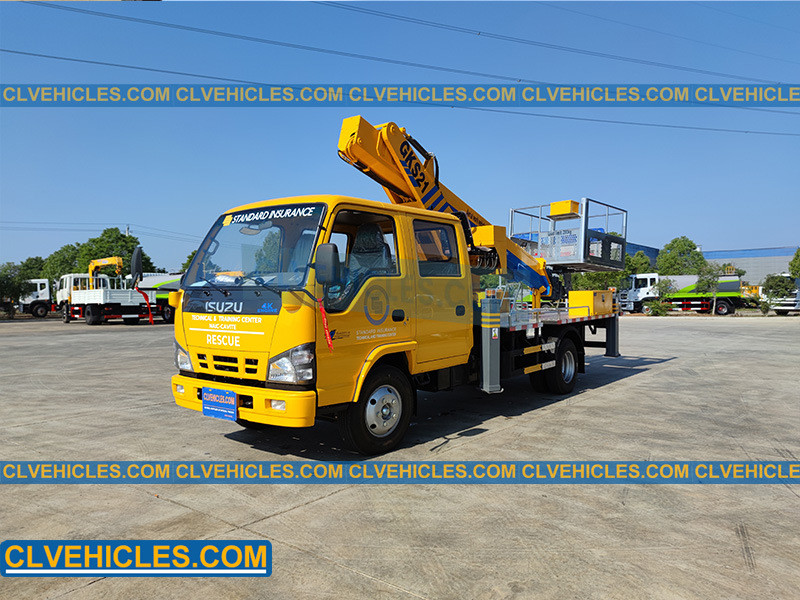

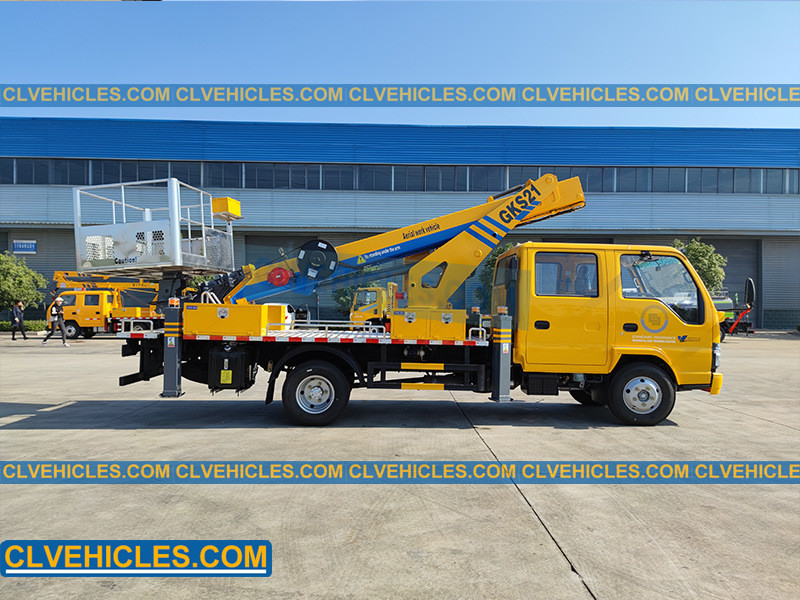

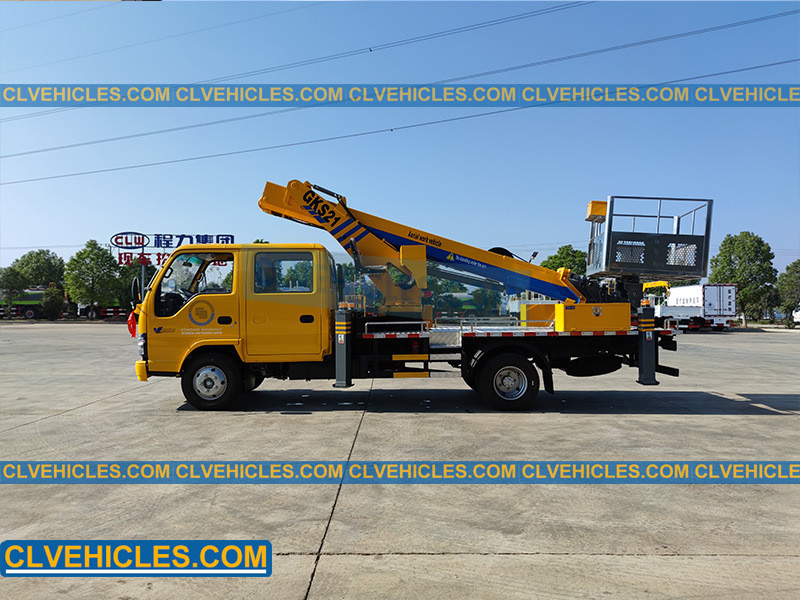

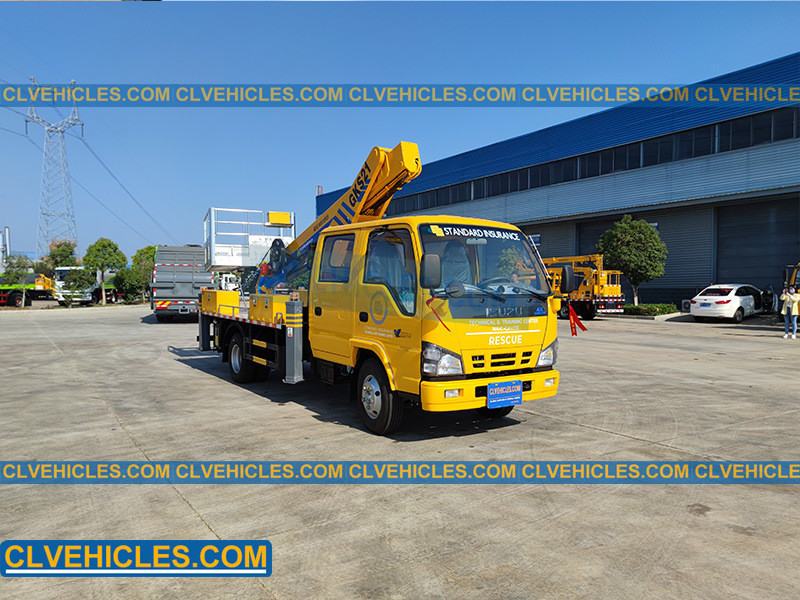

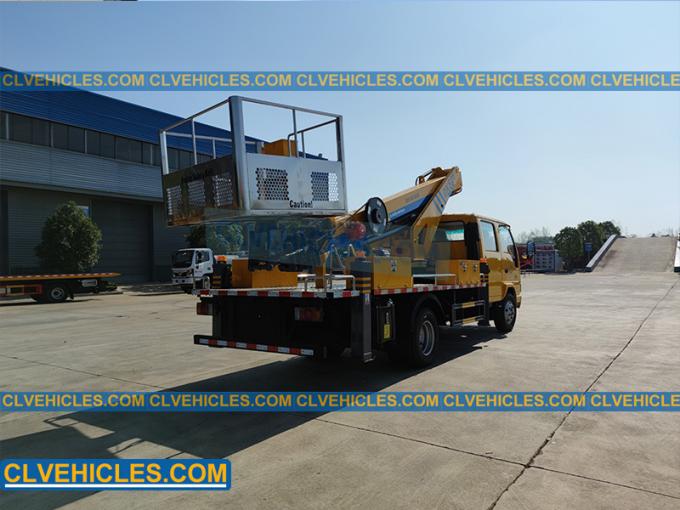

ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 0ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 1ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 2ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 3ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 4ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 5ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 6ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 7

Product Parameters

Vehicle Description
Vehicle model Platform Truck Overall dimensions(mm) 7385×1980×3140
GVW (kg) Appro×7000 Operational height (m) 18
Mass in working order (kg) Appro×6165 Max. Speed (km/h) 95
Chassis Description
Cab Double row cab with A/C
Wheel base (mm) 3815
Number of axles 2
Axle Front axle 2000
Rear axle 4800
Traction system 4x2
Operation control system Power steering
Braking system Oil brake
Transmission 5-speed MSB
Tire specification 7.00R16
Engine Description
Engine manufacture ISUZU Engines
Engine model 4KH1CN5HD
Emission standard Euro 5
Up-parts Description
Bucket
Max. working highe (m) 21m
Max. working radius (m) 8
Rated loading (kg) 200
Size (mm) 1100*600*1200
Type Insulation type
Boom
Type Three section , Telescopic
Rotation Angle 360
Rotation speed (r/min) 0-2
Boom Control mode

1.Bucket control

2.Manual operation

Outrigger
Type H
Vertical Breadth (mm) 4000
Horizontal Breadth (mm) 4000
Adjustment Adjusted separately

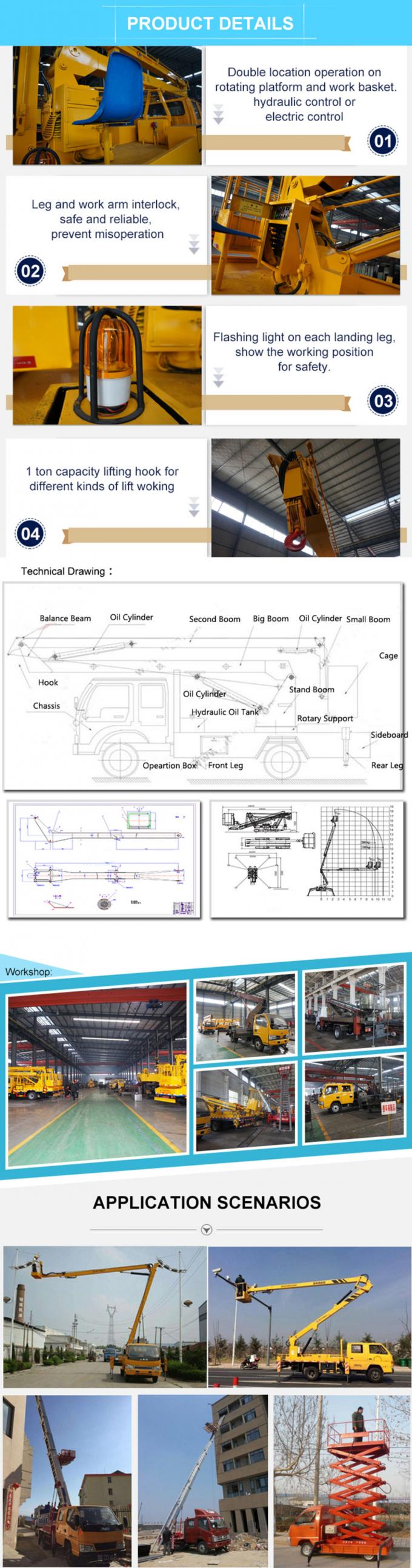

Product Details
ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 8ISUZU 600P 130hp Telescopic Bucket Truck 21m Manlift 1200*600*1100 9
