ISUZU ELF 190hp 4x4 AWD 18 Meters Aerial Work Platform Truck
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS |
| Model Number | CL5111GKZY9 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 42200- USD 45200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fuel | Diesel | Transmission Type | Manual |
|---|---|---|---|
| Drive Wheel | 4x4 | Condition | New |
| Engine | 190HP | Tire | 8.25-16 |
| Hydraulic Leg | 4sets | Other | Include FM, Power Steering |
| Product Name | Japanese Brand 12 To 16m High Lifting Platform Tru | Air Condition | Include |
| Material | Carbon Steel | Transmit | Hydraulic |
| Loading Weight | 5tons | Lifting Height | 18m |
| Size | 6100*2300*3220mm | Transport Package | Bulk |
| HS Code | 8705909990 |
Product Description
ISUZU ELF 190hp 4x4 AWD 18 Meters Aerial Work Platform Truck
Product Description
1suzu Scissor Lift Platform Truck, also called Man Lift Working Truck, Aerial Man Lift Truck, Scissor Lift Working Truck, Scissor Lift Platform Special Truck.
The Scissor Lift Platform Truck has 2-3 folding arms and provides temporary access for people or equipment to inaccessible height areas. The arm shaft is compact,flexible and large operating range. Four hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.
The aerial bucket platform working height can reach to 12 to 42meters
| Chassis Specification | ||||
| Truck model | CLW5118JGKIS18 | |||
| Cab | ISUZU 700P single row of seats cab, with air-conditional andUSB connector radio. | |||
| Driving Type | 4*2 Left hand driving | |||
| Max Speed (km/h) | 95 | |||
| Overall dimension (mm) | Appro. 7400*1980*3200 | |||
| GVW (kg) | Appro. 11000 | |||
| Mass in working order( kg) | Appro. 8485 | |||
| Wheelbase (mm) | 3815 | |||
| Tire | 8.25R16 | |||
| Clutch | Single-plate dry diaphragm spring clutch | |||
| Steering | Hydraulic steering with power assistance | |||
| Gear box | MLD 6-speed | |||
| Bridge | Front axle | 4.0T | ||
| Rear axle | 7.0T | |||
| Engine | Model | 4HK1-TCG40 | ||
| Fuel Type | Diesel fuel | |||
| Emission Standard | Europe V | |||
| Type | Water-cooled four-stroke, supercharged inter-cooling | |||
| Exhaust (ml) | 2999 | |||
| Max output power/rotate speed (hp /rpm ) | 190/3400 | |||
| Max torque/rotate speed (N.m/rpm) | 220/1700 | |||
| BrakingSystem | Service Brake | Air brake | ||
| Park Brake | Spring energy | |||
| Electric system | 24v | |||
| Special Function | ||||
| Working height (m) | 18 | |||
| Max working radius (m) | 9 | |||

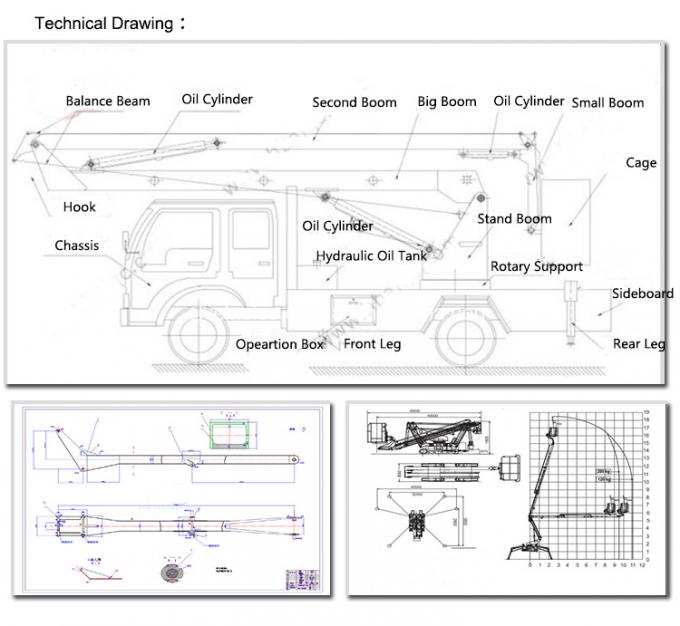

| Boom type | Two sections folding working boom | |||
| Rated loading in the bucket(kg) | 200 | |||
| Bucket size (mm) | 1300*1000*1000 | |||
| Rotating speed (r/min) | 0-2 | |||
| Rotationangle | 360° | |||
| Supporting leg | four sets hydraulic legs | |||
| Span of supporting legs | Horizontal | 3500mm | ||
| longitudinal | 4000mm | |||
| Boomcontrol mode |
1.Bucket control 2.Manual operation |
|||
| Supporting legs | Four hydraulic supporting legs with manual operation | |||
FAQ
1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
2.What about quality ?
Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
Our company truck pass ISO,3C,ASME certification.
Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
Our company truck pass ISO,3C,ASME certification.
3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
