18M 22M high altitude Truck Mounted Aerial Platform with water tank
| Minimum Order Quantity | 1 UNIT |
|---|---|
| Price | USD 31200- USD 34200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | CLW5161GSSG1 | Fuel | Diesel |
|---|---|---|---|
| Transmission Type | Manual | Condition | New |
| Supporting Leg | Hydraulic | Hook Loading | 1000kg |
| Control Mode | Hydraulic Or Electronic | Bucket Size | 1200*600*1100mm |
| Boom Type | Folading Or Telescopic | Rotating Speed | 0-2 R/Min |
| Bucket Loading | 200kg | Rotation Angle | 360 |
| Working Radius | 4-15m | Working Height | 6-22m |
| Transport Package | Nude Packing With Wax | Specification | 6990*2100*2500 |
| HS Code | 87059099 | ||
| High Light | High Altitude Truck Mounted Aerial Platform,22M Truck Mounted Aerial Platform,Truck Mounted Work Platform Water Tank |
||
Product Description
Product Description
18M 22M high altitude Aerial Working Platform hydraulic Lifter truck with water tank
Product Parameters
| Vehicle Description | |||||
| Vehicle model | Platform Truck | Overall dimensions (mm) | 7260×1990×3140 | ||
| GVW (kg) | Appro×5999 | Operational height (m) | 12 | ||
| Mass in working order (kg) | Appro×4450 | Max. Speed (km/h) | 95 | ||
| Chassis Description | |||||
| Chassis type | ISUZU | ||||
| Cab | Double row cab with A/C | ||||
| Wheel base (mm) | 3360 | ||||
| Front/Rear track base (mm) | 1504/1425 | ||||
| Front/Rear overhang (mm) | 1015/2140 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 1700 | |||
| Rear axle | 4700 | ||||
| Operation control system | Power steering | ||||
| Braking system | Oil brake | ||||
| Transmission | 5-speed MSB | ||||
| Tire specification | 7.00R15 | ||||
| Engine Description | |||||
| Engine manufacture | ISUZU Engines | ||||
| Engine model | 4KH1CN5LS | ||||
| Emission standard | Euro 5 | ||||
| Up-parts Description | |||||
| Bucket | |||||
| Max. working height (m) | 12 | ||||
| Max. working radius (m) | 8 | ||||
| Rated loading (kg) | 200 | ||||
| Type | Two section, folding type | ||||
| Control type | Manual | ||||
| Type | H type | ||||
| Quantity | 4 PCS | ||||
| Other equipment | |||||
|
1. Stainless steel coaming 2. Patterned plate on platform 3. Working lights 4. Double lock balancing valve 5. Two-way hydraulic lock |
|||||
Product Images

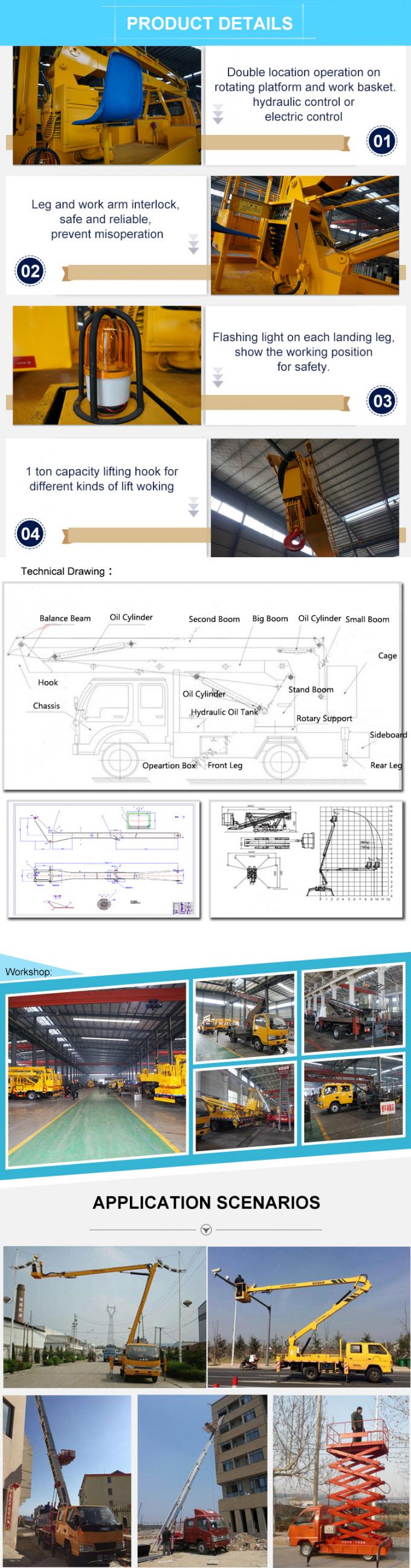

Product Details
